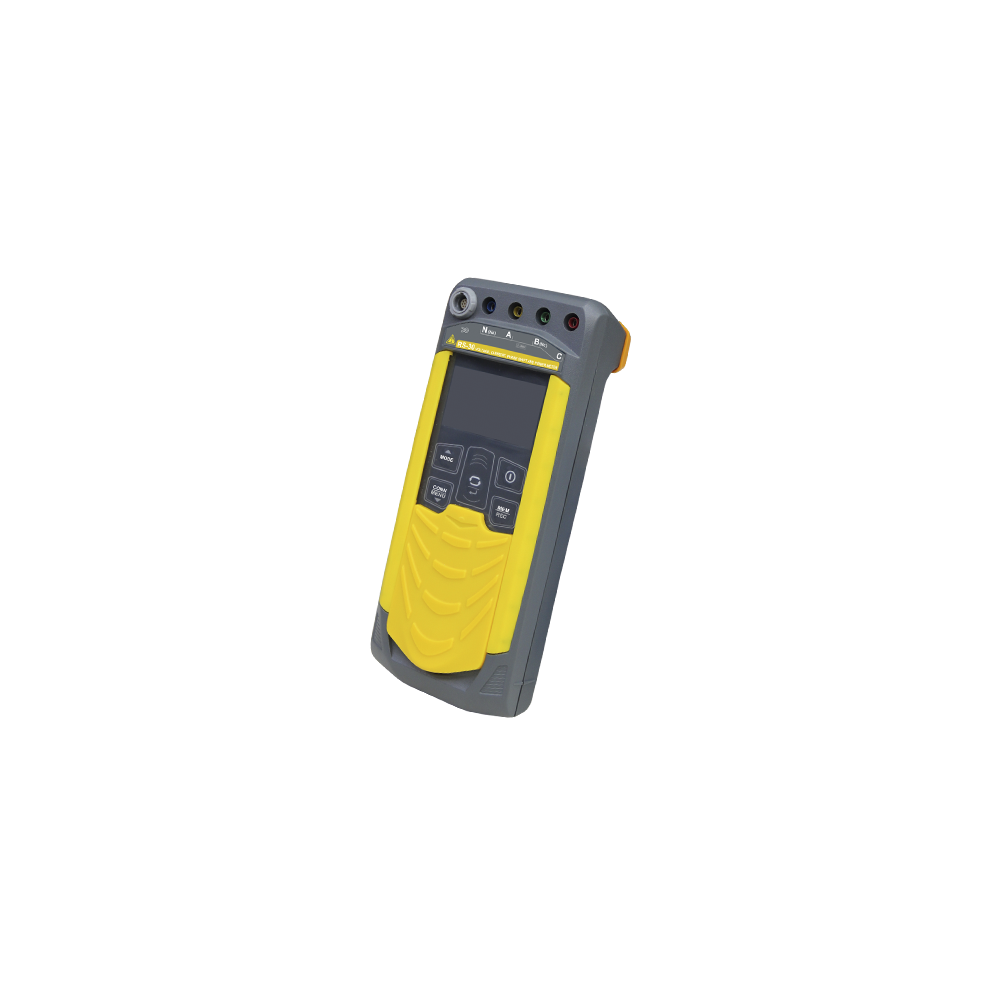

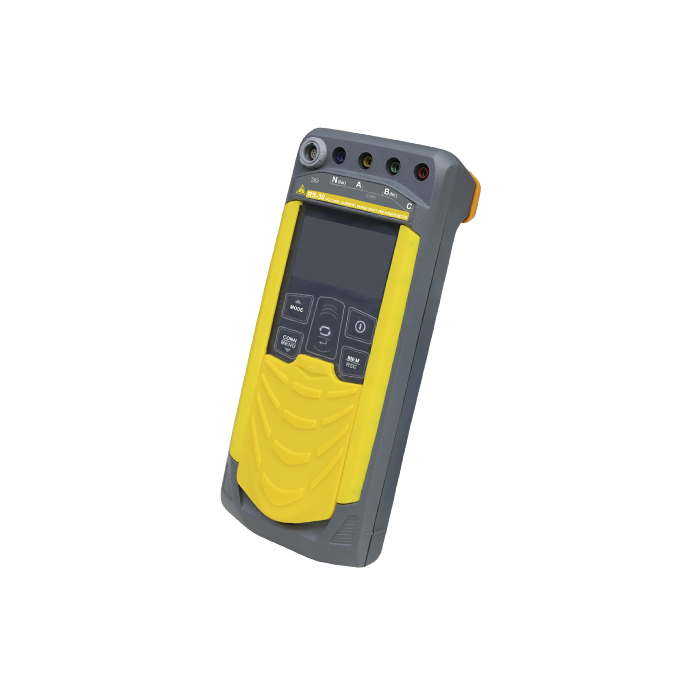

VOLTAGE, CURRENT, PHASE SHIFT AND POWER METER RS-30

- Measurements according to Wye (Y), Delta (Δ) and «2-phase» (isolated) connections;
- Measuring the effective AC voltage and current;
- DC voltage measurement;
- Measurement of active, reactive, full power and power factor;
- Measures phase shift between voltage and voltage, voltage and current, current and current;
- Measurement of the AC frequency;
- Indicates the higher harmonics levels (up to the 20th harmonics) and nonlinear distortions levels to estimate the quality of electric power, THD;
- PC connection;
- Indicates the phase sequence;
- Memory, data logger mode up to 2000 data points.

Specifications

 AC voltage measurement
  AC voltage measurement range   10.00 to 700.0 V
  Operating frequencies range   45 to 55 Hz
  DC voltage measurement
  DC voltage measurement range   10.00 to 700.0 V
  AC current measurement
  AC current measurement range, A:
  -using current clamp KTIR-30 and KTI-30   0.030 to 30.00
  -using current clamp KTIR-500   0.20 to 500.0
  -using current clamp PTIR-3000 and PTI-3000   1 to 3000
  Operating frequencies range   45 to 55 Hz.
  Measurement of active, reactive and full power
   Active P (W), reactive Q (VAr) and full power S (VA) measurement range:
  -using current clamp KTIR-30 and KTI-30   0.001 to 21.00 kW (kVAr, kVA)
  -using current clamp KTIR-500   0.005 to 350.0 kW (kVAr, kVA)
  -using current clamp PTIR-3000 and PTI-3000   0.100 to 2100 kW (kVAr, kVA)
  AC frequency measurement
  Frequency measurement range    45.00 to 55.00 Hz.
  Measurement of the phase shift between voltage and voltage fi rst harmonics,
  voltage and current, current and current
  Measurement range, degrees   – 179,90 to 180.00
  Power factor (PF) calculation
  Measurement range   – 1.00 to 1.00
  THD
  Measurement range   0 to 100%

Delivery set



  • Voltage, current, phase shift and power meter RS-30 -  1 pcs
  • Operating manual -  1 pcs
  • Power supply unit -  1 pcs
  • Measuring cables, length 1.5 m, colored -  4 pcs
  • “Crocodile” clip -  4 pcs
  • Bluetooth-USB adapter -  1 pcs
  • Instrument bag -  1 pcs
  • Battery holder -  1 pcs
  • Current clamp (subject to ordering):
Current clamp KTI-30 (8 mm diameter)
Current clamp KTIR-30 (8 mm diameter)
Current clamp KTIR-500 (40 mm diameter)
Flexible current sensor PTIR-3000 (180 mm diameter)
Flexible current sensor PTI-3000 (180 mm diameter)
