INSULATION TESTERS PSI SERIES

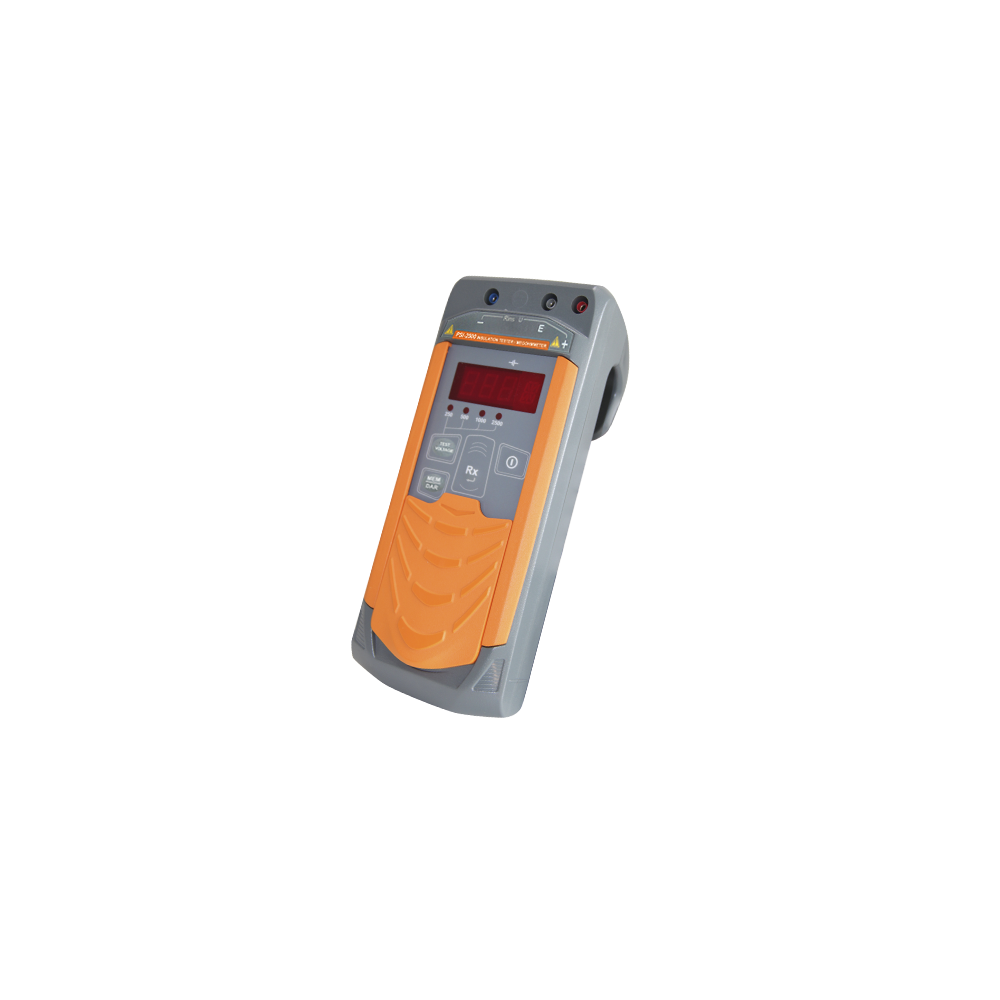

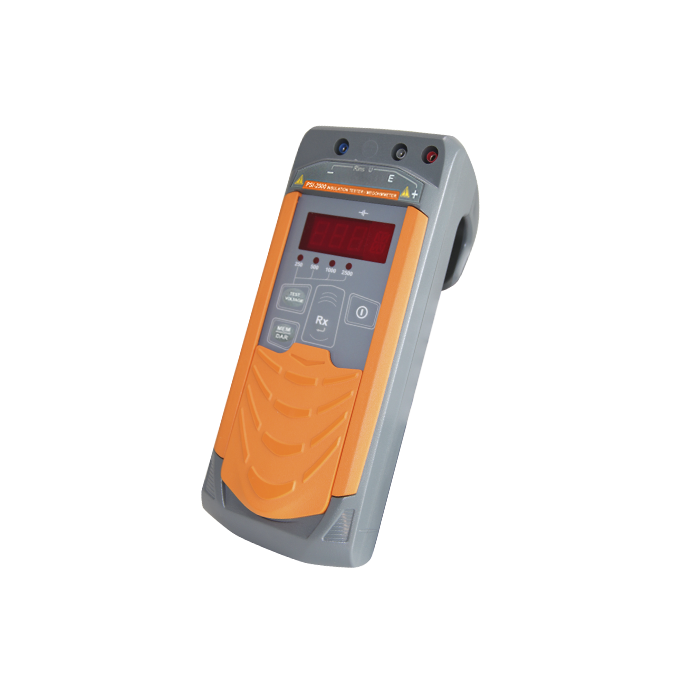

PSI-2500 Insulation Tester
- Cost-effective price;
- Automatic selection of measurement range;
- Protection from connection to energized circuits or unexpected circuit powering during measurement;
- Programmable time (1 to 10 minutes) of resistance measurement;
- Residual voltage indication and automatic discharge of residual voltage;
- Shockproof, dustproof and waterproof casing, IP 54 protection class, LED display;
- Battery status indication;
- Protection from wrong connection;
- High noise immunity;
- Instrument stores results of last measurement.
Specification
| Test voltages | 250, 500, 1000 to 2500 V |
| Resistance measurement range |
10 kОм to 999 MΩ (± 0.03×R + 3 digits) 1.00 to 10.0 GΩ (± 0.05×R + 5 digits) |
| AC voltage measurement range |
40 to 700 V (5 % + 3 digits) |
| Power supply | 5xАА size batteries |
| Operating temperature | от -10 °С to + 55 °С |
|
Dimensions |
88 х 105 х 245 mm |
| Weight | Up to 0.8 kg |
Delivery set
- Insulation tester PSI-2500 - 1 pcs.
- Operating manual - 1 pcs.
- Test lead, red, 1.5 m - 1 pcs.
- Test lead, blue, 1.5 m. (length does not includes the length of the probe) - 1 pcs.
- «Crocodile» clip - 1 pcs.
- Battery holder - 1 pcs.
- Disposal batteries 1.5 V АА (LR6) - 5 pcs.
- Consumer package - 1 pcs.

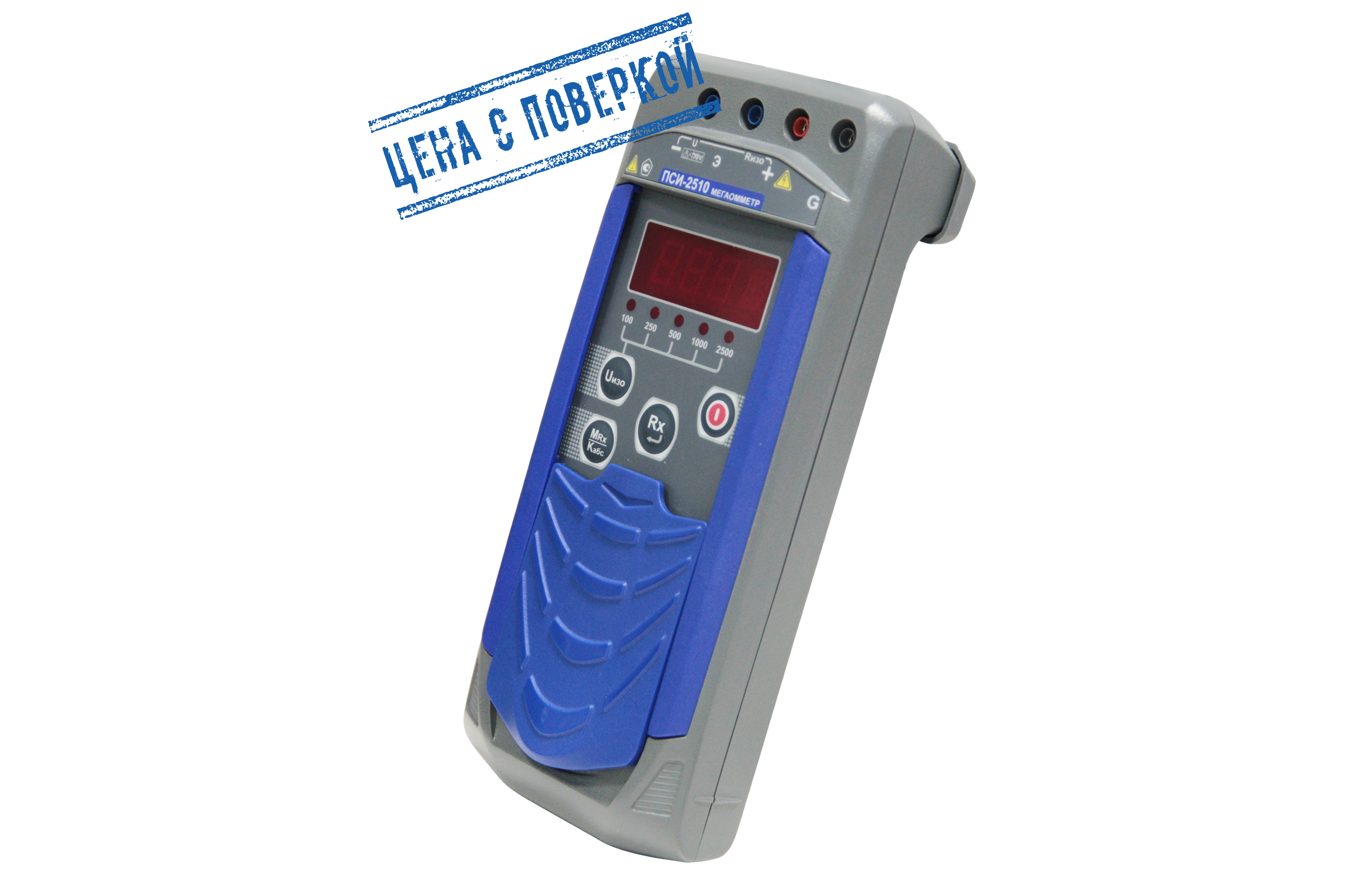

PSI-2510 Insulation Tester
- Insulation resistance measurement;
- Continuity measurement;
- Measurement of DC and AC voltage;
- Auto-measurement of Dielectric Absorption Ratio (DAR);
- Automatic discharge of residual voltage after measurement
- Sound indication;
- Shockproof, dustproof and waterproof casing, IP 54 protection class;
- Magnetic holder for mounting on steel surfaces;
- Protection from wrong connection
- LED display
- Programmable time of measurement from 1 minute to 10 minutes
- Memory up to 10 000 cells
PSI-2530 Insulation Tester
- Insulation resistance measurement;
- Continuity measurement;
- Measurement of DC and AC voltage;
- Auto-measurement of Dielectric Absorption Ratio (DAR);
- Calculation of Polarization Index (PI);
- Automatic discharge of residual voltage after measurement
- Sound indication;
- Shockproof, dustproof and waterproof casing, IP 54 protection class;
- Magnetic holder for mounting on steel surfaces;
- Protection from wrong connection
- LCD display
- Programmable time of measurement from 1 minute to 10 minutes
- PC connection
- Memory up to 10 000 cells
