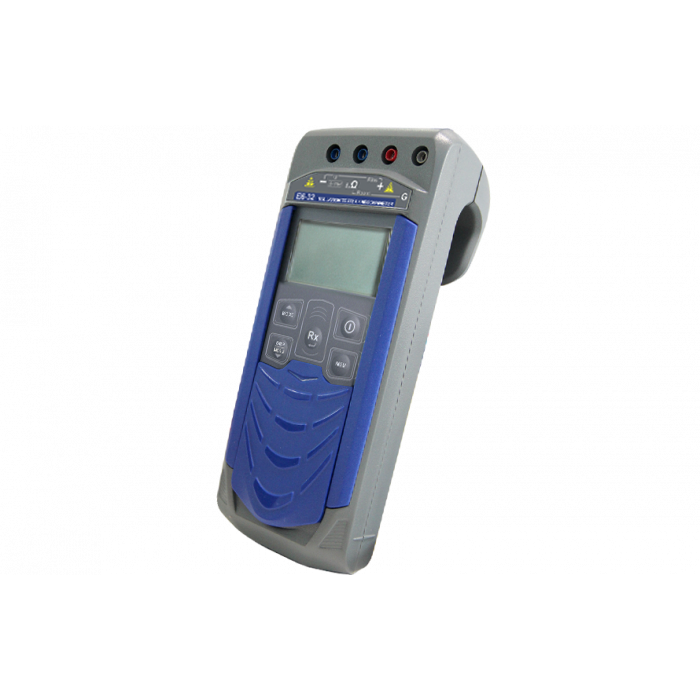

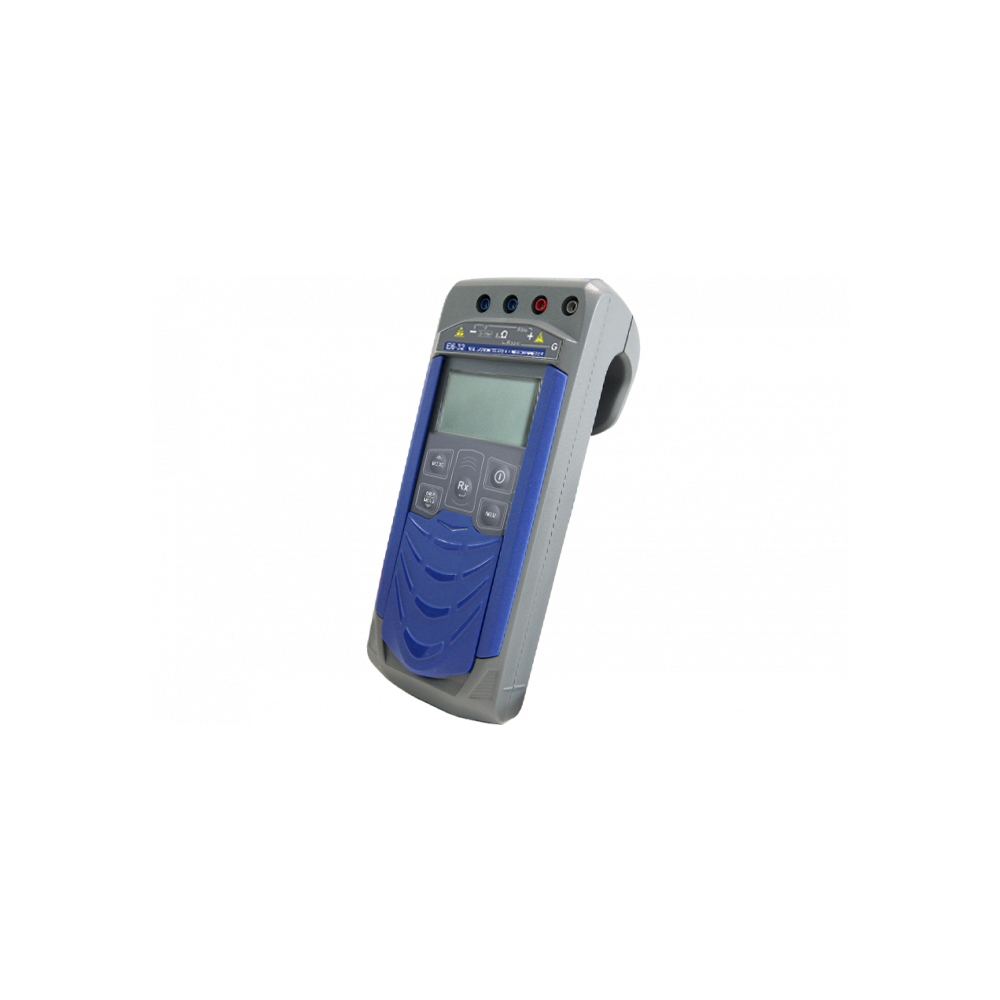

INSULATION RESISTANCE TESTER/ MEGOHMMETER E6-32

  • Insulation testing up to 2500 V and 300 GΩ range;
  • AC Voltage measurement;
  • Continuity measurement;
  • Automatic measurement of the Dielectric Absorption Ratio (DAR) and the  Polarization Index (PI);
  • Breakdown (DC spark over) voltage and varistors testing;
  • Residual high voltage indication and automatic discharge of the residual high voltage on the tested device;
  • Protection against connection to an alive mains or accidental voltage supply during measurement process;
  • High interference immunity in the measured circuit;
  • Programmable time of measurement from 1 minute to 10 minutes;
  • Data storing  up to 10 000 measurement results;
  • PC connection.

Specification

Insulation resistance measurement
Test
voltage
50, 100, 250, 500, 1000, 2500 V
or any from 50 to 2500 V (setup step 10 V)

Measuring
Range
1k Ω  to 10,0 GΩ  ± (3 % + 3 digits)
10,0  to 99,9 GΩ  ± (5 % + 10 digits)*
оver   500 V

100  to 300 GΩ  ± (15 % + 10 digits)*

* - use shielded test lead
Test voltage accuracy: + 10 % maximum on open-circuit voltage
Short-circuit current: < 2 mA.

Continuity measurement:

  • Measuring Range: 0,01 Ω  to 10,0 kΩ ± (3 % + 3 digits);
  • Open-circuit voltage: 11 to 14 V;
  • Test current: 200 mA (0 - 10 Ω);
  • Test lead resistance zeroing.

AC Voltage measurement: Measuring Range: 40 to 700 V ± (5 % + 3 digits).

Varistor Voltage at 1 mA DC Test current:

  • Test DC: 1 mA ± 2,5 %;
  • Voltage measuring Range: 100 to 1500 V ± (3 % + 5 digits).

Breakdown (DC spark over) voltage testing:
Measuring Range: 100 to 3000 V ± (3 % + 5 digits).

Other

Safety CAT IV 600 V (CAT III 1000 V),  double insulation
Power supply
NiMH rechargeable battery 6 V 2 Ah or 5x1,5 V AA
Operating temperature - 15 оC...+ 50 оC
Storage temperature
- 40 оC...+ 70 оC
Ingress protection
IP54
Dimensions
90 x 105 x 245 mm
Weight approx. 0,8 kg
Memory
10 000 cells
Data transmission
wireless (Bluetooth-USB Dongle)


Delivery set:

  • NiMH rechargeable battery 6 V 2 Ah - 1 pcs
  • Вattery charging adapter  - 1 pcs
  • Measuring cable, length of 1,5 m   - 2 pcs
  • Connective cable, length of 1,5 m   - 1 pcs
  • “Crocodile” clip  - 2 pcs
  • Battery holder 5 x AA - 1 pcs
  • Bluetooth-USB dongle - 1 pcs
  • Instrument bag - 1 pcs
  • Operating Manual - 1 pcs

Optional accessories:
Shielded test lead, length of 1,5 m
