EARTH RESISTANCE AND SOIL RESISTIVITY METERS IS-20, IS-20/1, IS-05, IS-06

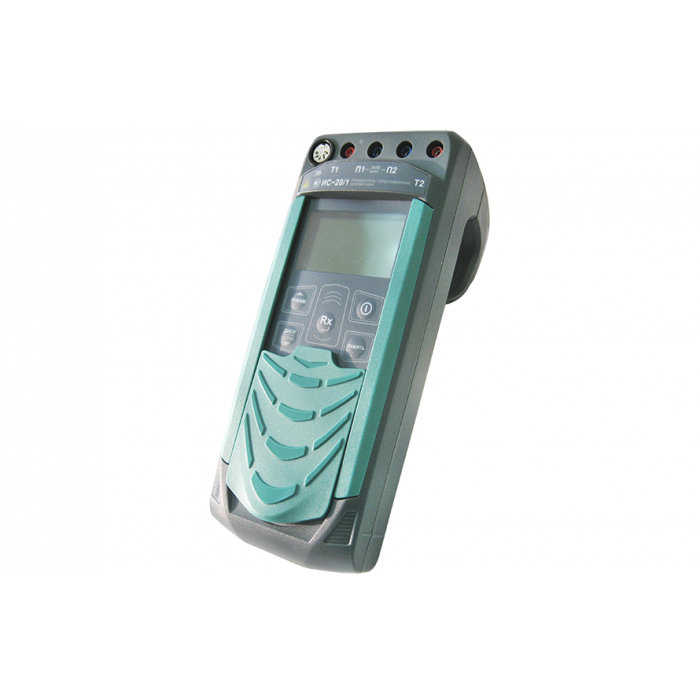

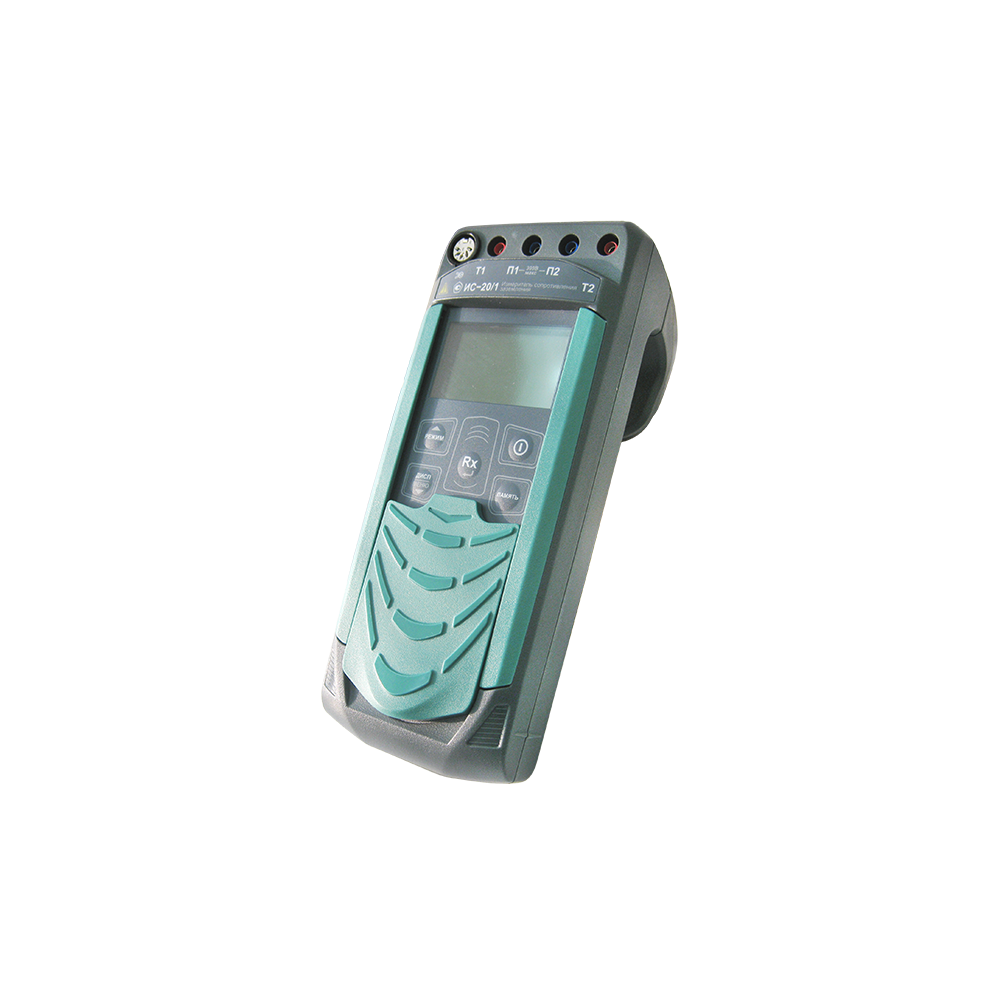

IS-20 and IS-20/1 Earth Resistance and Soil Resistivity Meters

Download Operation Manual earth resistance and soil resistivity meters IS-20, IS-20/1

- Earth resistance measurement by 2, 3 and 4-pole method;
- Selective earth resistance measurement;
- Stakeless earth resistance loop measurement with 2 clamps;
- Continuity measurement;
- Measurement of ground potential according to the distance;
- Ground potential measurement;
- Soil resistivity (Wenner’s method);
- Detection of connection errors;
- High interference immunity;
- Data storing up to 10 000 measurement results;
- PC connection.


Specification

Earth resistance  3, 4 - pole measurement
Measuring Range
Resolution
Maximum probe resistance
Accuracy
current electrode
E – H
voltage electrode
ES (E) – S
1 to 999 mΩ 1 mΩ 30 Ω 40 кΩ ± (3 %+ 3 digits)
0.01 to 9.99 Ω 0.01 Ω 1 кΩ
0.1 to 99.9 Ω 0.1 Ω 10 кΩ
1 to 999 Ω 1 Ω 40 кΩ
1.00 to 9.99 кΩ 0.01 kΩ

Test voltage: up to 48 Vrms;
Test current: up to 250 mA, 128 Hz;
Interference voltage 50 Hz: 24 V peak maximum.


Selective Earth resistance  3, 4 - pole measurement with current clamp (for IS-20/1 only)

Measuring Range

Resolution

Maximum probe resistance Accuracy
current electrode
E – H
voltage electrode
ES (E) – S
1 to 999 mΩ
1 mΩ
30 Ω
40 кΩ ± ( 0.05×R+
R2 ∕ 300×Rsis
+ 3 digits)
0.01 to 9.99 Ω
0.01 Ω
1кΩ
0.1 to 99.9 Ω
0.1 Ω
1 to 999 Ω
1 Ω
1.00 to 9.99 кΩ
0.01 kΩ

Allowable minimum test current on the current clamp: 0.3 mA;
Interference voltage 50 Hz: 24 V peak maximum;
Interference current 50 Hz: 2 Arms maximum.


Earth resistance measurement with double clamp (for IS-20/1 only)

Measuring Range
Accuracy
0.03 to 9.99 Ω ± (10 % + 3 digits)
10.0 to 99.9 Ω ± (15 % + 3 digits)

Interference current 50 Hz: 2 Arms maximum.

Leakage current measurement (for IS-20/1 only):

Measuring Range: 1 mA to 2.5 A ± (5 % + 3 digits).

Interference voltage measurement:

Measuring Range: 1 to 300 V peak ± (5 % + 3 digits).


Others

Safety CAT IV 300 V, double insulation
Power supply
NiMH rechargeable battery  6 V 2 Ah or 5x1.5 V AA
Operating temperature - 15 оC...+ 50 оC
Storage temperature
- 40 оC...+ 70 оC
Ingress protection
IP54
Dimensions
90 x 105 x 245 mm
Weight approx. 0.8 kg
Memory
10 000 cells
Data transmission
wireless (Bluetooth-USB Dongle)

Delivery set

  • NiMH rechargeable battery 6 V 2 Ah - 1 pcs
  • Вattery charging adapter - 1 pcs
  • Test lead, 1.5 m - 2 pcs
  • 40-meters blue and red cable reels of each colour - 1 pcs
  • Metal clip - 1 pcs
  • Auxiliary earth spikes, 0.2 m - 2 pcs
  • Crocodile clips, isolated - 2 pcs
  • Current measuring clamp: KTI-20/1 (Ø 40 mm) or  KTI-20/1 (Ø 80 mm) (on the customer choice)
  • Battery holder 5 x AA - 1 pcs
  • Bluetooth-USB dongle - 1 pcs
  • Carry bag - 1 pcs
  • Operating Manual - 1 pcs


Optional accessories
Transmitting clamp KP-20/1 (Ø 50 mm) - 1 pcs
Auxiliary earth spikes, 1 m - 4 pcs




IS-05 and IS-06 Earth Resistance Testers











Training video with English subtitles for IS-05

Training video with English subtitles for IS-06

IS-05 and IS-06 are simple and cost-effective models of earth resistance tester. They are used for resistance measurement of earth system elements, measurements of metal bounding and continuity of protective conductors by 2-pole and 3-pole methods. The instruments are powered by 5 x AA batteries.

Features:

  • Automatic selection of measurement range;

  • Shockproof, dustproof and waterproof casing, IP54;

  • Automatic switching to standby mode after 2.5 minutes from the last measurement;

  • LCD display (IS-06 has the LED display);

  • Indication of battery level;

  • Power supply by 5 x AA batteries;

  • Protection from incorrect turning on;
  • High noise immunity

Specifications:

Measurement range

Maximum permissible resistance in connection circuits

Accuracy

current circuits

E-H

potential circuits

E-S

from 0,01 to 9,99 Ω

1 kΩ

40 kΩ

± (0,03∙R+3 digits)

from 0,1 to 99,9 Ω

10 kΩ

from 1 to 999 Ω

40 kΩ

from 1,00 to 9,99 kΩ

Maximum interference peak voltage

From 1 to 999 mΩ

12 V, max.

From 1Ω to 999 kΩ

24V, max.

Delivery Set:

  • Earth resistance tester IS-05

  • Operation manual

  • Battery holder.

  • 5 x Alkaline batteries 1.5 V AA (LR6)

  • Connection lead, green, 1.5 m

  • Crocodile clips

  • Cable reel, red, 20 m

  • Cable reel, blue, 20 m

  • Instrument bag

  • Shipping package
